| Place of Origin: | China |
| Brand Name: | CIVL |
| Certification: | ISO,CCC |
| Model Number: | CIVL |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Nude |
| Delivery Time: | Within 35 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 units per week |
| Tank Volume: | 12,000L | Chassic: | HOWO |
|---|---|---|---|
| Housepower: | 290HP | Drive Type: | 4x2 |
| Displacement (L): | 4.58 L | Axle Number: | 2 |
| High Light: | Sewage Vacuum Truck,Sewage Pumping Trucks,12000 Liters Heavy Sewage Suction Truck |
||

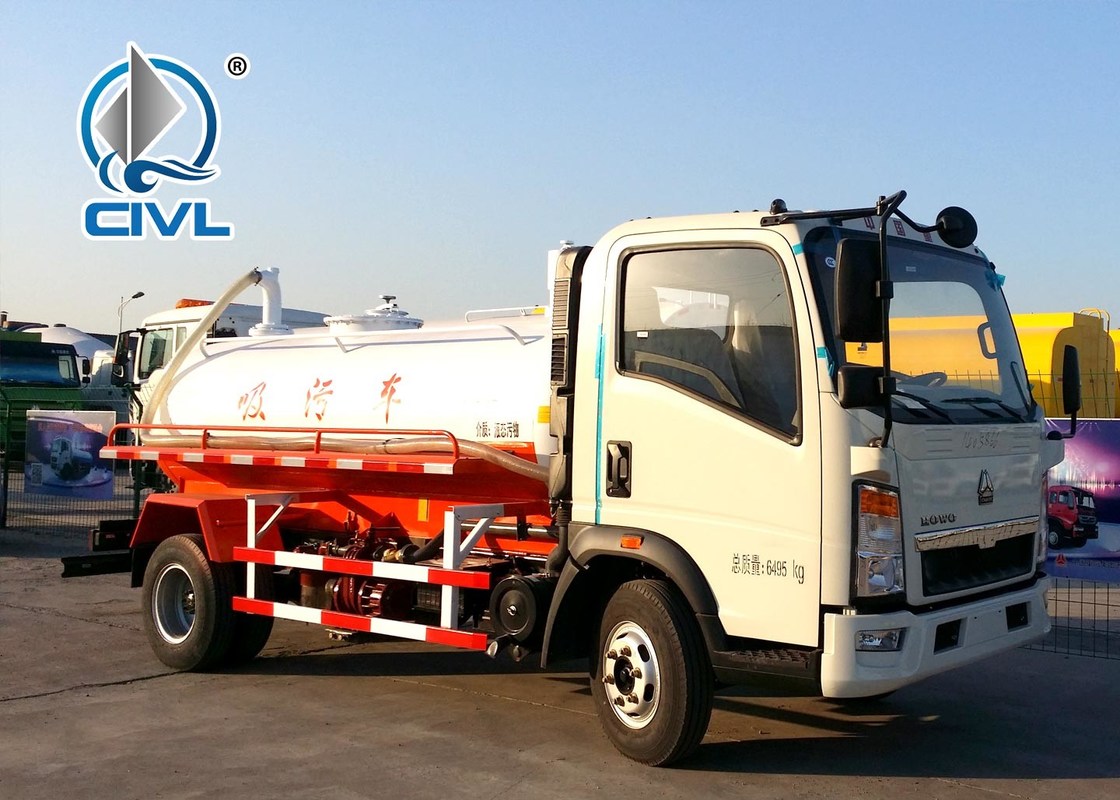

HOWO 4*2 heavy sewage suction truck, white color vacuum suction truck
Product Description:
1.sewage suction truck vacuum tanker truck is mainly used to suction sludge,sewage,
waste water,feces,etc.
the truck have high pressure pump to flush the sewer and also have vacuum pump to suck the sewage after
flushing the sewer. we can provide from 3000L, 4000L, 5000L, 6000L, 8000L,
10000L and 12000L sewer trucks.
2. Specification of Brand New vacuum sewage suction truck:
| WHAT THE SPECIFICATION OF SUCTION SEWAGE TRUCK ? | |||
| General Description | |||
| Overall Dimension(mm) | 8250*2500*3350 | Driving type | 4*2, left hand drive |
| Gross weight | 16000 | Rated loading capacity(m³) | 8990 12 |
| Curb weight | 6880 Kg | Axle number | 2 |
| Wheel base (mm) | 3800,4200,4500,4700,5000(mm) | F/R Axle load(kg) | 6000/10000 |
| Passengers in cab | 3 | Maximum speed(km/h) | 95 |
| Number of Tyres | 6 (1 spare piece) | Tyre type | 10.00-20 |
| Front/Rear suspension(mm) | 1250/2500 | Front/Rear track base (mm) | 1825 /1800 |
| Transmission | 5 speed forward with 1 reverse, manual | Fuel type | Diesel oil |
| Engine parameters | |||
| Brand | Sinotuck | Model | MC05.18-40 |
| Displacement (L) | 4.58 L | Emission Standard | EURO 4 |
| Maximum Power (kw/hp) | 132/180 | Maximum torque | 700N/m |
| Number of cylinders | 4 | Cylinder spread pattern | In-line |
| Intake type | Supercharged and mid-cooling | Rated rotation(rpm) | 2400 |
| Up-parts Description | |||
| Tanker dimension | 5000*1800 | ||
| Shape of the tanker | Circular | ||
| Material of tanker | Carbon steel , Inside with Epoxyanti-corrosion technology | ||
| Standard Equipment | Equipped with high-power vacuum suction sewage pump. Equipped with lifting function, and double hydraulic cylinder, rear cover can hydraulic opening with self-flowing valve. Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment. |
||
Advantages:
1.Tank can be lifted hydraulically to 40-45 degree.Rear door can be opened&closed hydraulically. With full opening
design, discharge can be very quick&complete.
2.Overfill system with music horn is equipped to prevent the vacuum pump damage from sewage water into vacuum
pump when the tank is full.
Production Photos:
Company Introduction:
CIVL GROUP is committed to international trade and cooperation.
We are a package of solution providers for full sets of vehicles, construction machineries and auxiliary facilities.
With the help of the materials,equipments and vehicles needed for infrastructure,logistics and transportation as well as people's livelihood, We provide a complete set of services in pre-sale,in-sale and after-sale to our customers.
Our products cover from transportation vehicles, special vehicles, passenger cars, pavement machinery, road maintenance equipment, port special tools, concrete production lines, etc. to the related-auxiliaries including various board houses, tents, steel structures, building materials, mobile fuel stations, etc.
Our Vision:We hope to enable customers around the world to create more value and wealth through our quality products and professional solutions.
We adhere to the business philosophy of multi-win strategies and integrity sharing.
We value the friendship and partnership!
Pre-service:
After-sale service:
Contact Person: DORIN YANG
Tel: 008613210589366
