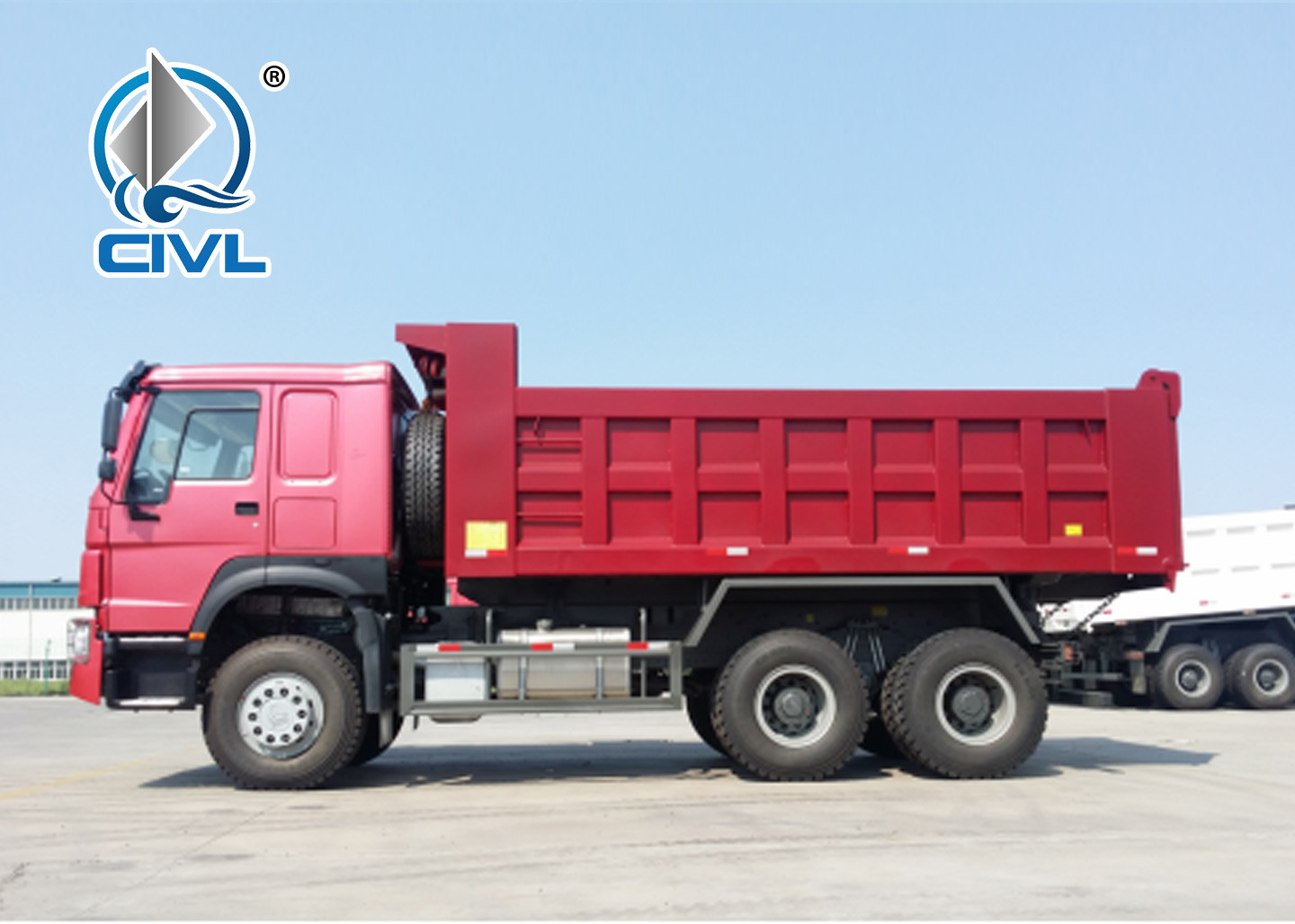

Sinotruk HOWO ZZ3257M3857A 30T Load STR Axle 6x6 Tipper Truck Hyva Dumper Truck

 all-wheel drive sport utility vehicle series is China's heavy truck integrated use of the current world of advanced automotive technology, the choice of proven components assembly developed a series of products.

6 × 6 all-wheel drive model equipped with China National Heavy Duty Truck WD615 Europe -Ⅲ turbocharged water-cooled diesel engines (may require optional European -Ⅱ engine according to the customer). HOWO4 × 4 all-wheel drive transportation points, dump, pulling three series, power coverage of 290 ~ 380Ps; cab passive safety performance has reached world advanced level, install four-point cab suspension with lateral stabilizing device, with high driving comfort ; China's heavy truck configuration HW transmission, diaphragm spring clutch, 1200/2000-type splitter, front and rear drive axle reinforced, WABCO braking system, ZF steering gear assembly and other advanced components. Vehicle CAN bus communication technology, VDO electrical instruments, improve the reliability of the electrical system, brake system uses VOSS quick plug connector to ensure tightness of the braking system, improves security.

HOWO6 × 6 all-wheel drive can be used as transport vehicles, various types of transport, fuel trucks, all types of transportation equipment chassis, suitable for off-road transport, towing equipment, transport operations oil, mining, forestry, fire fighting equipment and various types of special vehicle modification needs .



Engine

High strength/ high rigidity/ long life block: vermicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.

1). Good economy: high-explosive pressure and optimized injection and combustion system, ensuring its low specific oil consumption at a wide range of sppds, Minimum specific oil consumption is 186/kwh.

2). Low nose: noise reaches the international level.

3). High-integration: volume of spare parts reduced 25% compared with the similar products in the world, highly reducing the failure points.

4). Long life of B10: reach the most advanced world level of heavy duty truck, 1.5 million km.

5). Long oil change interval: for Euro IV oil, the first oil change mileage( oil change interval) for the road vehicles since left factory shall be up to 100.000 km, for the oil selling bu Petrochina and Sinopec. it shall be up to 60.000 km, greatly reducing the cost.

Transmission

HW series heavy yupe transmission is a new generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.

Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.

Drive Axle

The driving axle adveloped by SINOTRUK consist of single stage reduction axle and double stage reduction axle, which loading capacity include 5, 9, 11, 13, 16, 26 tons, matching SINOTRUK various series vehicles.

Cab

1). All the bodies adopt integral steel-framed structure, hard and firm, allowing high collision resistance and external force resistance.

2). Cab manufactured by the welding line composed by international advanced robots, safety and reliable top-level quality in China.

3). Automatic painting line consisting of robots ensuring the body appearance quality, corrosion prevention and weather resistance, increasing the effective more than 2 times compared to the conventional electrophoresis painting and allowing higher salvage value of vehicle.

4) Each safety performance index completely meeting the latest legal requirements of China , comprehensively enhancing the safety.









Specifications:





Model	6x6 dump truck                                                 Based on using STR technology
Cabin	Air suspension short flat cab, Hydraulic shock absorb adjustable seat, Safety belt, Adjustable steering, Sunroof, sun cap, single bunk
Engine	Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:	290HP/280kw	WEICHAI engine
	Displacement(L):	9.726liter
	Max torque:	1460NM@1400-1600rpm
	Bore/stoke:	126mm/130mm
	Fuel consumption:	<198g /kwh
Gear box	American technology	Max torque:1600NM
	Model:	HW15710C
	Speed:	15speed, 2reverse
Axle(front/rear)
Front axle	9T STR technology non-driving steering axle
Tandem	16T STR technology double reduction, hub redactor driving axle
Clutch	D430 diaphragm type, single dry frictional disc, hydraulic boosting
Brake	Service brake: Double circuit pneumatic brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake (EVB)
Steering	ZF8118, driver sit at the Left hand side, RHD is optional
Electric  Equipment
	Operating voltage:	24Vnegative grounded
	Starter:	24V,5.4KW
	Alternator	28V,758W
	Battery voltage	12V/135Ah, cigar lighter
Frame	Strengthen steel frame, designed according to tough road condition.
Tyre	10+1 spare tyre with rim
	12.00-20 bias tyre
Suspension system: Strengthen heavy duty Leaf spring type
	Front/Rear	10/12
Dump body:     type of body :
Inside size of Body(mm): 5170x2300x1500, 8x6mm (thickness of floor and rail of the dump body)
Lifting type: HYVA front lifter type hydraulic system
Overall dimension(mm): 11868x2496x3250 (Length x width x height)
Wheelbase	3800+1400mm
Track:
	Front/Rear	2036/1850
	Approach/Departure angle	28/30
	Front /Rear overhang	1525/1654
	Max speed	90km/h
Curb weight:	12190kg
