Create more value and wealth through our quality products and professional solutions.
Place of Origin: | China |
Brand Name: | CIVL |
Certification: | ISO,CCC |
Model Number: | CIVL |
Minimum Order Quantity: | 1 |
---|---|
Packaging Details: | In nude |
Delivery Time: | Within 35 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 units per month |
Condition: | New | Color: | Optional |
---|---|---|---|
Weight: | 25000kg | Type:: | Self-loading Concrete Cement Mixer |
High Light: | 5CBM concrete cement mixer truck,Concrete Cement Mixer Self loading,6x4 Concrete Mixer Truck |

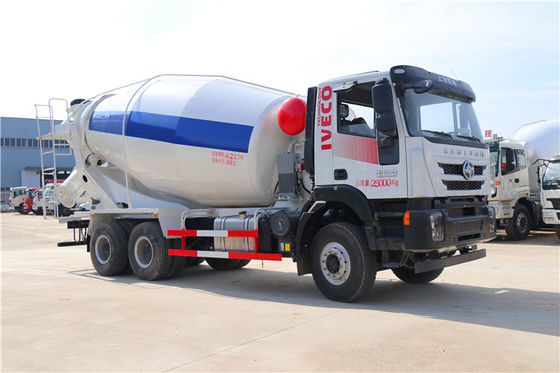

Diagram of concrete cement mixer truck brand new cement mixer truck
Iveco 5CBM Concrete Mixer Truck Parameters
Type | Concrete Mixer Truck | |
Traction Type | 6x4 | |
Cabin | Model: VEL1253 | |
lengthen flat roof cabin , one sleeper ,air condition | ||
LxWxH(mm) | 8875,9125x2500x3950 | |
Vehicle Main Dimensions |
Wheel base(mm) | 3800+1400 |
Front overhang(mm) | 1435 | |
Rear overhang(mm) | 2240 | |
Front/Rear truck(mm) | 2006/1850 | |
Approach/Departure | 25/15 | |
Frame section(mm) | 940-865/317(8+8) | |
Weight | Kerb mass | 13120kg |
Tatal mass | 25000kg | |
Max.Drinving Speed(km/h) | 80 | |
Engine | Brand | WEICHAI |
Model | C9350C4 | |
Type | Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging &inter cooling | |
Horse Power | 350 HP | |
Displacment | 8.709L | |
Max.output | 257kw | |
Max.torque | 1350N.m@1200-1600rpm | |
Emission Standard | EURIV | |
Axle | driving axle ration | 4.80 |
Rear | 16t ,double reduction | |
Gearbox | 12JSD160T | |
Steering | ZF technology | |
Mixing Volume | 5m³ | |
Tire | 12.00R20 | |
Fuel tank capacity(L) | 300(al-alloy) |
Advantage Of concrete mixer truck
1.Low energy consumption and environmental protection.
2.The hydraulic system has the feature of lower energy consumption.
3.Simple quick-change construction can meet multipurpose operation of users.
4.The integrated multi-functional control handle makes operation simple.
Capacity Of concrete mixer truck
The concrete mixer truck includes many models such as 1.5m3,2m3, 3m3 , 5m3 ,
8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any semi tailor made or mixer truck
special chassis as supporting part are available to choose
Concrete mixer truck details
