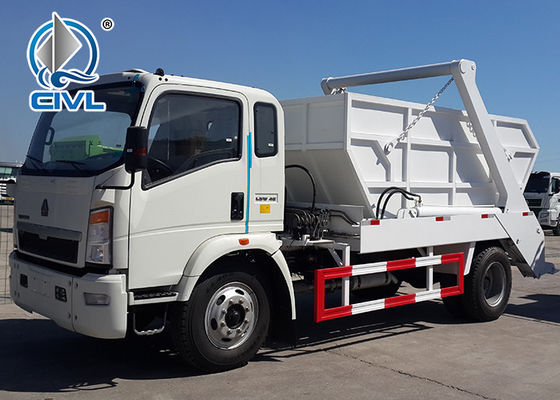

SINOTRUK 30T Hork Arm Garbage Truck Collection Trash Compactor Truck Euro2 336hp 10 Tires Swing Arm Garbage Truck

Name: SINOTRUK 30T Hork Arm Garbage Truck Collection Trash Compactor Truck Euro2 336hp 10 Tires Swing Arm Garbage Truck
Brand: SINOTRUK
SKU: ZZ125D1M3211
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (198 reviews)

Product Details:

Place of Origin:	CHINA CNHTC
Brand Name:	SINOTRUK
Certification:	ISO CCC
Model Number:	ZZ125D1M3211

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Nude
Delivery Time:	Within 20-30 days after the receipt of the deposit
Payment Terms:	LC/TT etc, T/T, L/C
Supply Ability:	100 units per week

Contact Now

Detailed Product Description

Bucket:	Q345	Lifting:	HYVA Brand
Color:	Option	Tire:	Triangle Brand
Spare Parts:	Option	Type:	New
Operation:	Auto	Condition:	New
High Light:	trash compactor truck , rear load garbage truck , Euro2 Hork Arm Garbage Truck

SINOTRUK 30T Hork Arm Garbage Truck Collection Trash Compactor Truck Euro2 336hp 10Tires

Features and advantage:

1.carriage structure material adopt T520 high-strength seamless steel, which is better than 16Mn, thus the vehicle lifespan and performance guaranteed.
2. Filler precision rail and MG nylon slide constitute the most advanced skateboarding.
3. Europe popular dual pump, dual oil valve Hydraulic system, Energy-saving.
4. E-control and manual operation available, most optimized operation method of compression truck currently.
5. Key hydraulic parts imported from famous brand abroad, quality guaranteed.
6. Sealing system adopts automatically hydraulic locking device, can prevent sewage leakage effectively.
7. Double-end compression , enlarge effective loading capacity.
8. Various kinds of rubbish bin lifters can be equipped.

Specifications

Product	Arm roll garbage truck
Chassis Supplier	CNHTC SINOTRUK Group
Chassis Type	ZZ1257M4647C
Emission Standard	Euro 3
Parameters	Overall Dimension length/width/height (mm)	895025003190
	Total Mass(kg)	25000
	Kerb Mass(kg)	12170
	Rated Load(kg)	12700
	Fuel Type	diesel
	Max Speed	90
Engine	Type	WD615.92E
	Fuel Consumption/100 km(L)	≤30
	Maximum Output (kW)	196/2200
	Maximum Torque(N•m)	1100/(1100-1600)
Chassis	Wheelbase(mm)	4600+1350
	Tread(front/rear)	2041/1830
	Transmission Model	hw13710
	Steering Gear	Germany ZF steering gear
	Clutch	Diaphragm clutch, hydraulic remote control, pneumatic servo
	Cab	single bed ,with A/C
	Axle	3
	Tire Type	12.00-20 bias tire
Arm Roll	Max Lifting capacity(T)	20
	System Working Pressure (Mpa)	27
	Rail Width(mm)	≥1060 mm
	Container loading Time(s)	≤60
	Unloading Time(s)	≤55
	Self-Unloading Angle(°)	≥49
	Matched Container Length(mm)	5400-6450
	Container Locking Device	hydraulic lock

SINOTRUK 30T Hork Arm Garbage Truck Collection Trash Compactor Truck Euro2 336hp 10 Tires Swing Arm Garbage Truck 0

Description:

Our company mainly manufacturing the dump truck, tractor trucks, concrete pump truck, fuel tank truck, fire-fighting truck, carriage removable garbage truck, compression garbage truck, sewage suction truck, sprinkling truck, powder material truck, municipal engineering vehicles, semi-trailers, new energy automobile, products are sold all over the country and exported Southeast Asia, Africa, North America, the Middle East, Russia and other markets.

Competitive Advantage:

1. Intelligent control, the higher operation efficiency brings the higher profit

2. Wide range of product specifications and scope of application

3. A variety of devices available, complete function

4. Apply to varieties of automotive chassis

5. Professional Sales Team of trucks. Our target is not selling trucks; we help customers choose the

best suitable trucks as per customer’s situation.
6. Professional team for spare parts and aftersales services.

7. Technique support and training.

8. Customization service, as per your request, we will customize our production for you

Product Tags: sanitation vehicle waste collection trucks

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
Machine series:
1.Wheel loader,Backhoe loader
2.Roller
3.Motor Grader
4.Bulldozer
5.Excavator
6.Crane(truck crane,crawler crane,truck mounted crane,self erecting crane)
7.Forklift and 45t contain reach stacker
8.Paver and so on
9. Spare parts
