Create more value and wealth through our quality products and professional solutions.
 |
| Place of Origin: | China |
| Brand Name: | XCMG |
| Certification: | ISO |
| Model Number: | XMR403 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | In nude |
| Delivery Time: | 35-40 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Unit/Units per Month |
| Brand: | XCMG | Color: | Yellow |
|---|---|---|---|
| Operating Weight: | 4100kg | Grade Ability: | 30% |
| Engine Model: | ZN490Q | Type: | Double Drum Roller |
| High Light: | construction machinery equipment,road maintenance equipment |
||

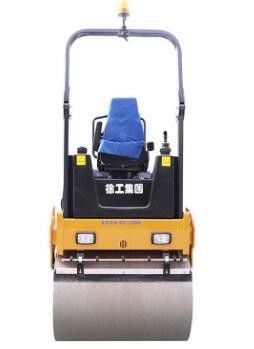

The XMR303/403 vibration roller offers high operational efficiency and a wide range of applications. It is suitable for road, airport, port, dam, stadium, park, pavement, car park and trench projects that require a solid foundation due to its compact shape and flexible movement.
XCMG XMR403 manual vibratory road roller price
The XMR403S is a highly efficient machine designed for a wide range of compaction and maintenance work including roads, airfields, seaports, dams and housing foundations. The compact design and high mobility also make the machine indispensable to munici-pal construction work such as stadiums, parks, pedestrians, parking area, trenches, etc. Articulated frame features flexible steering for great stability.
Hydraulic transmission, hydraulic vibration/oscillation and steering combine to offer unsurpassed reliability.
Both front and rear drums are equipped with scrapers and sprinkler devices.
Excellent drum edge visibility during operation allows for easy compaction of road curbs.
Specification for Ride-on small-size Road Mini Vibratory Roller XMR403 Light Compaction Equipment 4 ton double drum roller XMR403
| Type | Unit | XMR403 |
| Operating weight | kg | 4100 |
| Static linear load | N/cm | 157/157 |
| Travel Speed | km/h | 0—10 |
| Gradeability in theory | % | 30 |
| Minimum turning radius | mm | 2932/4232 |
| Min ground clearance | mm | 350 |
| Steering angle | ± ° | 30 |
| Swing angle | ±° | 10 |
| Vibration frequency | Hz | 60 |
| Nominal amplitude | mm | 0.41 |
| Exiting force(L/H) | kN | 42 |
| Compacting width | mm | 1300 |
| Drum diameter | mm | 800 |
| Engine Model | ZN490Q | |
| Rated rotating speed | r/min | 2600 |
| Rated power | kW | 35.5 |
| Dimensions(LxWxH) | mm | 2720x1416x2776 |
| Water tank capacity | L | 220 |
| Fuel tank capacity | L | 66 |
| Hydraulic tank capacity | L | 52 |
