Create more value and wealth through our quality products and professional solutions.
 |
| Place of Origin: | China |
| Brand Name: | CIVL |
| Certification: | ISO,CCC |
| Model Number: | CIVL |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | In nude |
| Delivery Time: | Within 35 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 500 Set/Sets per Month |
| Brand: | Howo | Condition: | New |
|---|---|---|---|
| Color: | Jacinth | Lift Type Of Carriage: | Ventral Lifting |
| Wheel Base (mm): | 3625+1350 | Loading Weight(kg): | 30000KG |
| High Light: | water tanker trailer,oil tanker truck |
||

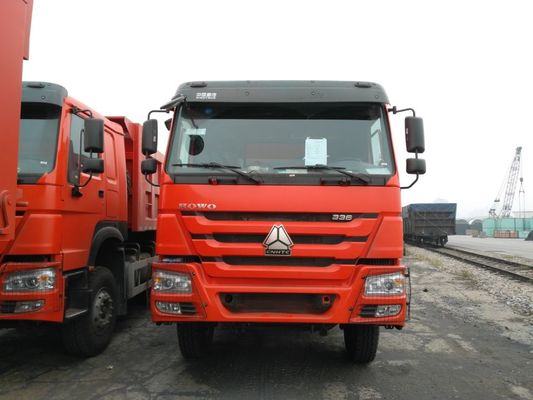

6x4 Tipping Dumper Sinotruk Howo 10 Wheeler Tipper Dump Truck
According to clients' requirements, we can customize different loading weight and volume.
The popular dump truck models include: sinotruck HOWO 336hp 6X4 10 wheeler dump truck, sino truck 371hp ten wheeler dump truck, SINOTRUK howo 8X4 12 wheeler 40tons end dump truck and so on.
Nude or polish with wax for low price Sinotruk HOWO 6X4 20 cubic meters dump truck tipper truck for sale,Shipped by bulk ship or RORO
Specification for dump truck
| Truck Model | 6x4 Tipping Dumper Sinotruk Howo 10 Wheeler Tipper Dump Truckfor Sale | |
| Truck Brand | SINOTRUK –HOWO | |
| Dimension(Lx W xH)mm | 8214x2496x3386mm | |
| Cargo body size (L*W*H, mm) | 5400x2300x1400 | |
| Cargo body thickness(mm) | bottom:8mm, side:6mm, | |
| Lift type of Carriage | Ventral lifting | |
| Approaching angle/Departure angle(°) | 19/26 | |
| Overhang(front/rear) (mm) | 1500/1739 | |
| Wheel base (mm) | 3625+1350 | |
| Max speed(km/h) | 75 | |
| Curb weight(kg) | 12290 kg | |
| Loading Weight(kg) | 30000 kg | |
| Fuel tanker capacity | 300L with locking fuel cap | |
| Fuel consumption(L/100km) | 32 | |
| Clutch | Single-plate dry clutch Φ420mm | |
|
Engine
|
Model | WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , turbo-charging and intercooling |
| Horse Power, | 371HP | |
| Emission Standard | EURO II | |
| Transmission | Model | HW 19710,10 forwards and 2 reverse |
|
Brake system
|
Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels | |
| Auxiliary brake |
Engine exhaust brake
|
|
|
Steering system
|
Model | ZF8098 hydraulic steering with power assistance |
| Front axle |
HF9 , Steering with double T-cross section beam Loading capacity:9000KG |
|
| Rear axle | HC16, Casting axle housing, central double reduction with differential locks between axles and wheels | |
| Color | Optional | |
| Tire | 12.00R20 11 pieces(1 spare) | |
|
Electrical system
|
Operating voltage | 24V,negative grounded |
| Starter | 24V,7.35KW | |
| Alternator | 28V,1500W | |
| Batteries | 2*12V.165Ah | |
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light. | ||
| Cab |
HW76 cab, (one sleeper,with air-condition), all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|
