Create more value and wealth through our quality products and professional solutions.
 |
| Place of Origin: | China |
| Brand Name: | CIVL |
| Certification: | ISO,CCC |
| Model Number: | CIVL |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | nude |
| Delivery Time: | Within 35 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000units/year |
| Color: | Option | Axle: | Fuwa |
|---|---|---|---|
| Tire: | Triangle | Material: | Q235 |
| Thickness: | 3mm | Lifting: | Front |
| High Light: | tractor trailer trucks,flatbed Trailer Truck |
||

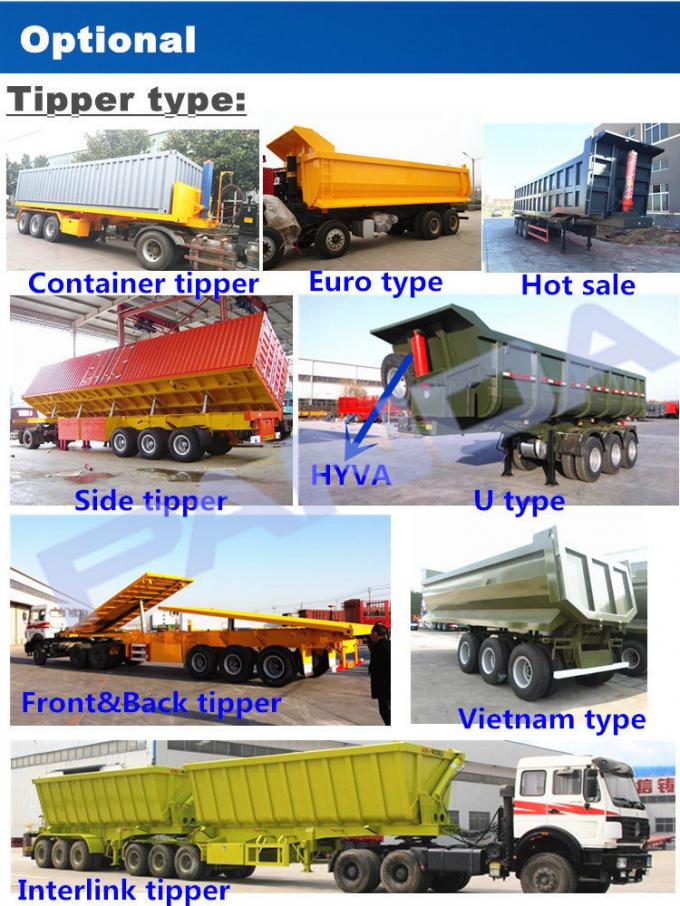

Sinotruk cimc 3 axles dump trailer tipper semi truck trailer for 40 50 60T load capacity
| Overall Dimensions | 12800x2500x3300 (mm) |
| Effective Volume | 50M3 |
| Rated Load | 60000 kg |
| Floor | Steel Sheet 5mm(customized) thickness or diamond plate |
| Main Beam Material |
Q345B manganese plates, automatic submerged arc welded |
| Axle | 13 Tons x Fuwa(or other brand) |
| No. Of the Axles | 3 axles |
| Tyre Specifications | 11.00R20 |
| No. Of the Tyres | 12 |
| Suspension | Heavy duty leaf spring suspension |
| Pieces of leaf-spring | 10 |
| Brake System | dual-pipes braking system |
| Brake Air Chamber | Four double and two single chamber |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Electrical System | 1.Voltage: 12v 2. Receptacle: 7 ways (7 wire harness) |
| Accessory | One tooling box with a set of standard trailer tool |
Design Drawing:
A Drawing will Send to Clients Confirm Suitable Design for Varied Trucks and Purpose.Try to Provide Most Suitable Trailers
Blank Progress:
Beams and Accessories are Processed with Scale Numerical Control Plasma Cutting Machine,Brings High Precision,Ensure Geometric Accuracy.
Rolling-Over Welding: Panda Mechanical Holds the Leading Welding Quality,Rolling-Over Welding Provide Every Point Quality Welding.
Shot Blasting:
Trailer Body and Ports are Pre-treated with Shot Blasting in Order to Remove Rust and Eliminate Oil,Improve Surface Intensity and Painting Adhesion
Painting:
Once Primer with Twice Finish Painting Provide Good Anti-rust Capability
Test:
Trailer Performance test before delivery
