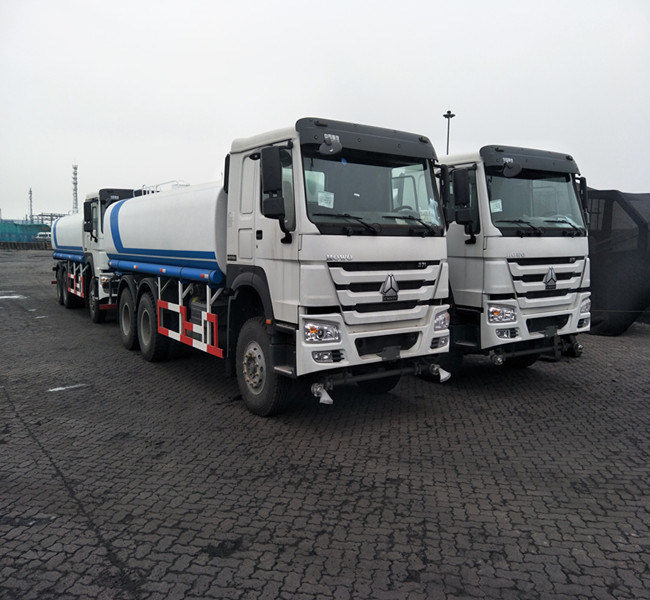

SINOTRUK HOWO Water Tank Truck on HOT sale
Specifications
(1) HOWO 6x4 water tank truck
(2) 6x4 driving model
(3) Horse Power:290HP
(4) Euro II emission
(5) Certification: ISO9001 CCC,SGS
Technical Parameters
SINORUCK HOWO 6x4 Water tank Truck
| Cabin | HW 70 cab, with two seats and air condition,70°hydraulically tillable to the front. | ||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 9800×2500×3200 | |
| Wheel base (mm) | 4325+1350 | ||
| Wheel track (front/rear) (mm) | 2022/1830/1830 | ||
| Approach/Departure angle(°) | 14.5/15 | ||
| Weight in KGS | Tare Weight | 12400 | |
| payload | 25000 | ||
| Front axles loading capacity | 1x7000 | ||
| Rear axles loading capacity | 2x16000 | ||
| Max. driving speed(km/h) | 102 | ||
| Engine | Brand | Sinotruk | |
| Model | WD615.87 | ||
| Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 290 | ||
| Emission standard | Euro Ⅱ | ||
| Gearbox | HW19710,10-speed forward and 2 reverse gear | ||
| Steering | ZF8098 power steering, hydraulic steering with power assistance | ||
| Clutch | Reinforced diaphragm clutch, diameter 430mm | ||
| Fuel tank (L) | 400 | ||
| Tire | 12R22.5 tubeless tyre 11 pcs including one spare tire | ||
| Tank specification |
20,000 liters .Equipped with front(rear,side)sprinkler. .Equipped with pump .Equipped with fire valve,water valve,and filter gauze |
||
