Create more value and wealth through our quality products and professional solutions.
 |
| Place of Origin: | China |
| Brand Name: | CIVL |
| Certification: | ISO,CCC |
| Model Number: | CIVL |
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | In nude |
| Delivery Time: | Within 35 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000Unit/Units per Month |
| Model Number: | GTBZ58S | Brand Name: | XCMG |
|---|---|---|---|
| Condition: | New | Color: | Yellow |
| High Light: | boom truck crane,telescoping boom crane |
||
| Item | Unit | Parameter |
| a. Overall length (Transport status) | m | 19.45(14.6) |
| b. Overall width (With shaft retracted/extended) | m | 2.49/5.03 |
| c. Overall height | m | 3.05 |
| d. Wheelbase | m | 5.22/4.59 |
| Maximum working height | m | 58.6 |
| Maximum platform height | m | 56.6 |
| Maximum working range | m | 25.1 |
| Maximum carrying weight | kg | 230 (Without limit)/450 (With limit) |
| Luffing range of boom | ° | -1~80 |
| Slewing angle of turntable | ° | 360° |
| Maximum rearward slewing | m | 2.32 |
| Platform size | m | 2.4×0.9 |
| Slewing angle of platform | ° | 180 |
| Overall weight | kg | 27200 |
| Maximum traveling speed | km/h | 4.5 |
|
Minimum turning radius (With shaft retracted/extended) |
m | 9.5/6.6 (Four-wheel steering) |
| Minimum ground clearance | m | 0.25 |
| Maximum gradeability | % | 45 |
| Tire specification | - | 445/50D710 24-ply |
| Engine model | - | Deutz TCD3.6 L4 |
| Engine rated power | kW/(r/min) | 74.4/2300 |

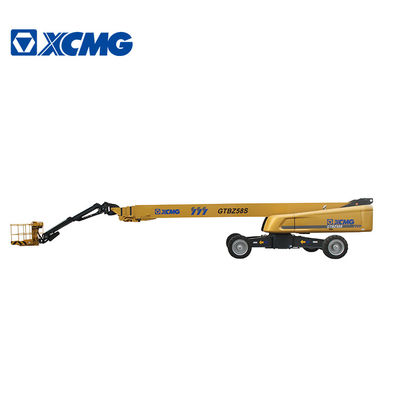

Below picture for you reference
