Create more value and wealth through our quality products and professional solutions.
|Place of Origin:||CHINA|
|Minimum Order Quantity:||Negotiable|
|Packaging Details:||by container|
|Delivery Time:||Within 25 days|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||200，000 sets per month|
|Name:||Modern Prefab Houses||Material:||Steel|
|Surface:||Environmental Protection Water-based Paint||Window:||PVC Sliding Window|
modular container houses,
prefab hospital building

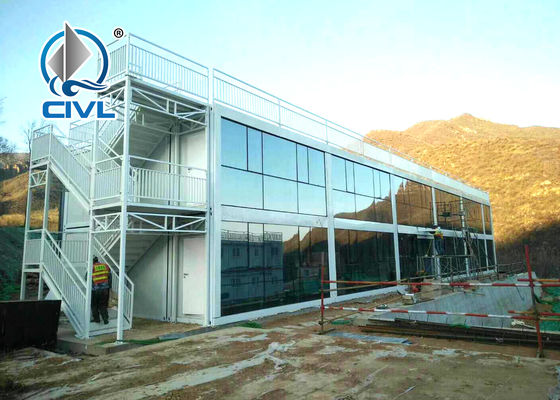

Mobile Hotel House Folding prefabricated house Mobile Station Container office
Mobile homes are widely used in various fields of life, such as:
Carports, Hotels, houses, Kiosks, booths, offices, sentry boxes, guardhouses, shops, toilets, villas, warehouses, workshops, factories, carports, hotels, houses , Houses, kiosks, booths, offices.
*** Material : full-color steel sandwich panel/75-100mm glass fiber sandwich panel,
***Q235 strip steel frame structure
***Galvanized and anti-rust, anti-corrosion,
***18mm thickness cement particle board .
The dimension and material
|Structure||Steel column||Galvanized bending steel,160mm*160mm*2450mm t=2.0mm|
|Roof girder||Galvanized square tube120x60x1.5/30x30x1.5|
|Roof secondary beam||Galvanized rectangular tube,40mm*60mm t=1.5mm|
|Ground girder||Galvanized extruded steel,5955mm*3000mm*148mm Galvanized square tube120x60x1.2/30x30x1.2|
|Ground secondary beam||Galvanized rectangular tube,40mm*60mm t=1.5mm|
|Ground secondary beam||Galvanized rectangular tube,80mm*80mm t=1.5mm|
|Surface treatment||Environmental protection water-based paint, primer + topcoat≥80μm；Color no.:RAL9018|
|Roofing||Roofing||V970 color steel single tile t=0.34mm|
|Insulation cotton||Glass wool, bulk density ≥14kg / m³ t=50mm|
|Suspended ceiling||Aluminum-plated zinc color steel plate, color white gray t=0.4mm|
|floor||Substrate + moisture-proof film||Fire retardant fiberboard, density ≥1.2g / m³, flame retardant class B t = 15mm|
|Wall||Color coated board material||Double-sided aluminum-plated zinc color coated board, PE coating t=0.3mm|
|Insulation||Flame retardant glass wool, bulk density ≥40kg / m³, flame retardant A grade, t = 50mm|
|Window||Specification||WxH=960mm*1000mm with Screen|
|Frame material||Upvc window frame sliding series|
|Line||Three-core cable = 4㎡, socket cable = 2.5㎡, lighting switch cable = 1.5㎡|
|breaker||High breaking small circuit breaker with leakage switch|
|Light||Two sets of single tube LED ceiling lights|
|Switch, socket||1 10A switch, 3 10A five-hole sockets, 1 16A three-hole air conditioning socket|
1. Convenient transportation.
2. Strong material , anti-vibration and anti-deformation.
3. Water tightness.
4. Environmental protection, convenient disassembly and assembly, saving time and effort.
5. More combinations. Meeting room, dormitory, kitchen, bathroom, etc.
6. Solar photovoltaic panels can be used for indoor electricity, heating, water supply and bathing.
Q1: Delivery time?
A1: Within 15-30 days,According to your quantity and color.
Q2: Production ability?
Q3: How to install?
A3: With install instruction and video,
QTY≧1000m2 technicians will be sent off if it is requested(visa fee,air tickets,accommodation, beared by buyers).
