|Place of Origin:||CHINA CNHTC|
|Brand Name:||SINOTRUK HOWO|
|Minimum Order Quantity:||1 unit|
|Delivery Time:||Within 20-30 days after the receipt of the deposit|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100 units per week|
|Fuel Type:||Diesel||Payload:||5 Ton|
|Product Name:||Wrecker Tow Truck||Transmission Type:||Manual|
flatbed tow truck,
tow truck wrecker

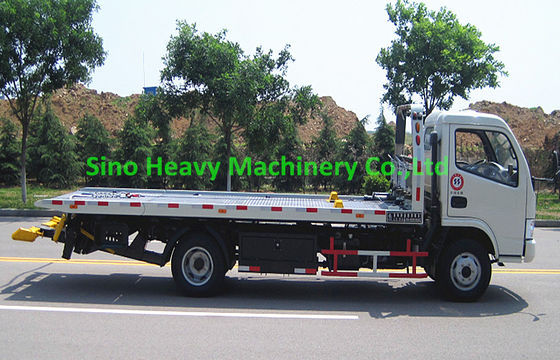

5 Ton Flatbed Tow Truck In White ,Howo Obstacle Heavy Duty Tow Trucks Flatbed Wrecker Carrier Road Rescue Vehicle
1. The road wrecker truck is applied American technology, with strong practicability and good price. The sales volume is increasing fast in recent years.
2. Our road wrecker trucks are divided into several series, platform road removal,mini ones,and heavy ones. They have adopted world advanced technology and cater for many world clients from American, African, Europe etc.
3. Main parts of the vehicle like underlift and booms are adopted HG70 high strength wielding steel.
|Wheel Base mm||3800||3800|
|No. of Tires||6||6|
|Specification of Tire||7.50-16||7.50-16,8.25-16|
|Approach Angle/Departure Angle||22°/10°||22°/10°|
|Front Overhang/Rear Overhang mm||1120/2470||1120/2470|
|Total Mass kg||6495||6495|
|Reorganize and outfit quality kg||5100||5400|
|Platform||Platform Dimension mm||5450×2200||5450×2200|
|Extension Stroke mm||3100||3100|
|Carrying Mass kg||3000||3000|
|Min. Inclination Angle(folded)||8°||8°|
|Under-lift||Max. lifting mass kg||1500||1600|
|Rating lifting mass fully extended kg||1100||1200|
|Max. Effective Length mm||1705||1705|
|Extension Stroke mm||1200||1200|
|Range of Inclination Angle||-8°～10°||-8°～10°|
|Rating Towing Mass kg||6000||6000|
|Rating Pulling Mass of Winch KN||40||40|
|Length of Cable Wire m||20||20|
(1). Ensure the intensity and strength of these.
(2). Decreasing the curb weight so that reduce the fuel consumption.
