Create more value and wealth through our quality products and professional solutions.
 |
| Place of Origin: | CHINA CNHTC |
| Brand Name: | SHMC |
| Certification: | ISO CCC |
| Model Number: | SD16 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | Within 20-30 days after the receipt of the deposit |
| Payment Terms: | LC/TT |
| Supply Ability: | 300 units per week |
| export market: | Africa, Latin-America, South Asia, East Asia, Middle East |
| color: | yellow |
| Dimension: | 5140×3388×3032 | Operating Weight: | 16T |
|---|---|---|---|
| Ripper Type: | Three Shank Ripper | Color: | Optional |
| Brand: | China Sinotruk | ||
| High Light: | international bulldozer,heavy construction equipment |
||
Description:
The SD16 is equipped with a hydraulic drive system with hydraulic control technology and has an advanced structure,
providing reliable performance and convenient and flexible operation, making the SD16 an ideal construction machine.
Specifications:
|
ITEM |
UNIT |
SD16 |
|
L×W×H (Ripper not included) |
mm |
5140×3388×3032 |
|
Operating weight (Ripper not included) |
t |
17 |
|
Engine |
- |
Shangchai SC11CB184G2B1/ Weichai WD10G178E25 |
|
Rated power |
kW/rpm |
120/1850 |
|
Gradeability |
° |
30 |
|
Blade type |
- |
Straight tilt blade U blade Angle blade |
|
Blade width |
mm |
Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040 |
|
Dozing capacity |
m3 |
Straight tilt blade 4.5 U blade 5 Angle blade 4.3 |
|
Ma× drop below ground of blade |
mm |
540 |
|
Lift height of blade |
mm |
1095 |
|
Ripper type |
- |
Three-shank ripper |
|
Ripping depth of ripper |
mm |
572 |
|
Lifting height of ripper |
mm |
592 |
|
Number of carriers (each side) |
- |
2 |
|
Number of track rollers (each side) |
- |
6 |
|
Number of track shoes (each side) |
- |
37 |
|
Width of track shoe |
mm |
510 |
|
Track gauge |
mm |
1880 |
|
Ground length and ground pressure |
mm/MPa |
2430-0.067 |
|
Pitch |
mm |
203.2 |
|
Forward speed |
km/h |
0–3.29 |
|
0–5.82 |
||
|
0–9.63 |
||
|
Reverse speed |
km/h |
0–4.28 |
|
0–7.59 |
||
|
0–12.53 |
||
|
Net Engine Output at Rated RPM |
- |
148HP(110.5KW) |

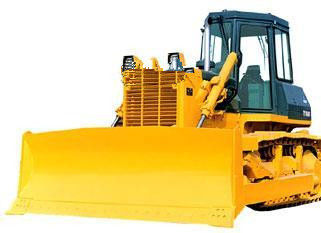

Photos
