SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V

SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V

  • SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V
  • SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V
  • SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V
  • SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V
  • SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V
  • SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V
  • SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V
SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V
Product Details:
Place of Origin: China
Brand Name: CIVL
Certification: ISO,CCC
Model Number: CIVL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Nude
Delivery Time: Within 35 days
Payment Terms: T/T
Supply Ability: 100 units per week
Contact Now
Detailed Product Description
Fuel Type: Diesel Emission Standard: Euro 2,Euro 3,Euro 4
Horsepower: 290hp Transmission Type: Manual
Condition: New Drive Wheel: 4x2
Cab: HW76
High Light:

heavy duty trucking

,

semi trailer truck

SINOTRUK HOWO 290hp Tractor Truck, Diesel 4x2 Trucks ZZ4183m3611V





Description:



  A tractor is simply towed by a tool between the front of the car and the trunk.
(That is, the front of the car can be separated from the original car box and tow other cars, and the car box can also be pulled from the original car by other fronts) General large trucks (semi-trailers).
Commonly known as "semi-trailer tractor", there is a load-bearing turntable at a point in front of the rear axle of the frame, called "saddle".



Specifications:



Item

SINOTRUK HOWO 4X2 TRACTOR TRUCK 290HP

Truck model

ZZ4183M3611V

Maximum output



290hp (213 Kw) at 2200 rpm

Engine model

WD615.87, Euro II/III emission standard

Clutch

Single-plate dry diaphragm-spring clutch, diameter 430 mm, hydraulically operating with air assistance

Front Axles

HF7/HF9

Rear Axles

ST13/ST16/HC16

Steering

ZF power steering, model ZF8098, hydraulic steering with power assistance

Tires

12.00-20 tube  Option: 12R20 tube, 12R24 tube, 12R22.5 tubeless

Air conditioner

With safety belts for driver and co-driver;With air conditioner

Transmission

HW15710/HW19710, 10 speed

Export Markets

South America, Southeast Asia, Africa, Mid East, Eastern Asia

Loading

Capacity



    20-60 ton

Driver's Cab

HW76High deck cab,double bunk



Photos:

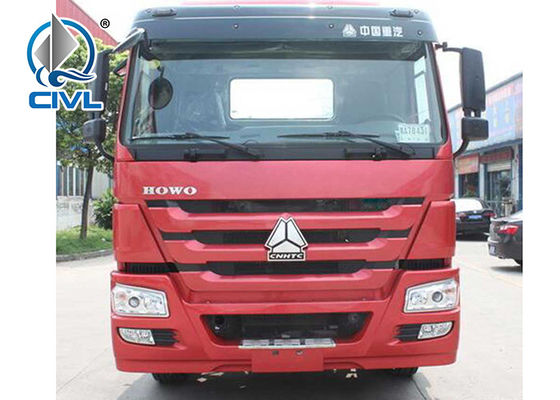

SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V 0SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V 1SINOTRUK HOWO 290hp Prime Mover Truck Diesel 4x2 Trucks ZZ4183m3611V 2



The difference with the cargo truck ratio:

  • The "three short" beams are short, the wheelbase is short, and the rear overhang (the part that extends behind the rear axle) is short;
  • The gearbox has more gears, and some have 12 gears from low speed to high speed;
  • Larger fuel tank, generally double fuel tank;
  • The compressed air storage tank has a larger capacity;
  • Equipped with trailer brake distribution valve and trailer brake connection pipeline;
  • Equipped with rear lights and trailer circuit connection plugs, etc.

Truck series:
1. Dump trucks; cargo trucks (1-120ton)
2. Tractor trucks; (1-120 tons)
3.Tanker trucks,( water tanker and oil tanker)
4. Mixer trucks and concrete pump truck
5. Mine dump trucks( 30 tons off-road mine tipper, 50tons/70tons mine dump truck, 6x6 articualted dump trucks)
6. Off-road drive trucks( 4x4. 6x6 and 8x8 Trucks)
7. Garbage trucks( garbage compactor truck, suction trucks)
8. Truck mounted cranes(normal road truck crane, truck mounted crane)
9. Special trucks( wrecker trucks, military trucks...)
10.Semi trailers( container semi-trailer, low-bed semi-trailer, tanker trailer, dumper trailer...)
11.Truck spare parts
