| Place of Origin: | China |
| Brand Name: | CIVL |
| Certification: | ISO,CCC |
| Model Number: | CIVL |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Nude |
| Delivery Time: | Within 35 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100 units per week |
| Fuel Type: | Diesel | Emission Standard: | Euro 2 |
|---|---|---|---|
| Horsepower: | 351 - 450hp | Gross Vehicle Weight: | 25000 Kg |
| Transmission Type: | Manual | Condition: | New |
| Drive Wheel: | 6x4 | Transmission: | HW19710 |
| Color: | Optional | ||
| High Light: | heavy duty trucking,semi trailer truck |
||

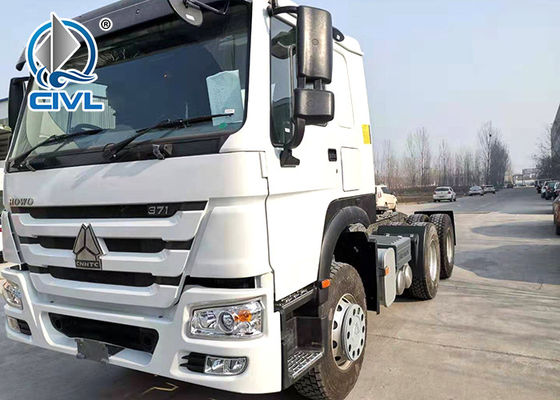

Transport PRIME MOVER HOWO A7 ZZ4257N3247C1 With Dual-circuit Compressed Air Brake
Description:
SINOTRUCK HOWO series trucks own the elegant appearance, strong operation system and excellent safety.
Sino Heavy Machinery Co,Ltd is the authorized company of SINOTRUK(CNHTC), and mainly deal with heavy duty trucks /all spare parts and service We supply HOWO, , KING, GOLDEN PRINCE, HOHAN series 4X2, 6X4, and 8X4 dump trucks, tractor trucks, cargo trucks, garbage trucks, oil tank trucks, water tank trucks, log trailers tractors, terminal tractors, etc. Our products arrange from 190 horse power to 410 horse power, and loading capacity cover from 5 tons to 50 tons.
Detailed Parameter of SINOTRUK TRACTOR TRUCK , PRIME MOVER HOWO A7 ZZ4257N3247C1
| SINOTRUK HOWO 6x4 TRACTOR HEAD | ||
| Model | ZZ4257M3247C | |
| Drive Type | 6x4 LHD (RIGHT HAND DRIVE IS OPTIONAL) | |
| Cab | Type | Long Cabin |
| Equipment | two sleepers with Air Condition | |
| Weight | Kerb mass(kg) | 8800 |
| GVW(kg) | 8800+40000 | |
| The fifth wheel | SINOTRUK BRAND | 50mm/ 90mm |
| Dimensions | Max. L*W*H(mm) | 6800x2500x3095mm |
| Front/Rear overhang | 1415/785 | |
| Wheel base(mm) | 3225+1350 | |
| Track width(mm) | 1830/1830 | |
| Performance | Max. speed (km/h) | 90±10 |
| Max. gradeability(%) | 30 | |
| Approach/Departure angel | 20°/40° | |
| Engine | Brand | SINOTRUK |
| Model | ||
| Power (kw/hp) | ||
| Max torque | ||
| Displacement (L) | 9.726 | |
| Emission Standards | Euro III EGR | |
| Transmission | Brand | SINOTRUK |
| Model | HW13710CL | |
| Control type | Manual | |
| Gear Shift | 10-forward & 2-reverse speeds | |
| Clutch | Type | Single plate,diaphragm spring |
| Diameter (mm) | Φ430 | |
| Action | hydraulically operating with air assistance | |
| Brakes | Type | Drum |
| Service Brake | With dual-circuit compressed air brake | |
| Park Brake | Power spring brake acting on rear wheel | |
| Auxiliary Brake | WEVB | |
| ABS | With ABS | |
| Steering | Brand | ZF TECHNOLOGY |
| Type | ZF8098 hydraulic steering with power assistance | |
| Chassis | Type | U-profile parallel ladder frame and reinforced subframe |
| Dimensions (mm) | 300x80x8 | |
| Suspension | Front | 9 semi-elliptic leaf springs |
| Rear | 12 leaf semi-elliptic springs | |
| Axles | Brand | SINO HOWO |
| Front | HF7 7T front axle, drum brake | |
| Rear | MCY13Q: 13 ton strengthened axle, | |
| double reduction driving axle | ||
| Ratio | 3.08 | |
| Option | 4.11/3.70 | |
| Tire | Type | 295/80R22.5 TUBELESS TIRE |
| Option | 12.00R20 RADIAL TIRE | |
| Fuel tank | Tank capacity(L) | 400 |
| Material | Aluminum alloy/Iron | |
| Electrics | Type | 24V |
| Starter | 5.58kw(24) | |
| Generator | 2.0kw(28V 70A) | |
| Battery | 2x135Ah | |
