| Place of Origin: | China |
| Brand Name: | HBXG |
| Certification: | CCC ISO |
| Model Number: | SD9 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negociable |
| Packaging Details: | Waxed on deck or in container |
| Delivery Time: | Within 40 days after get the deposit |
| Supply Ability: | 800 unit /month |
| Dimension: | 8478 X 4314 X 3970 Mm | Operating Weight: | 48880KG |
|---|---|---|---|
| Max Traction Power: | 139.6Kn | Bulldozer Width: | 4314mm |
| Colour: | Yellow | MAx Digging Depth: | 614 Mm |
| High Light: | hydraulic bulldozer,heavy construction equipment |
||

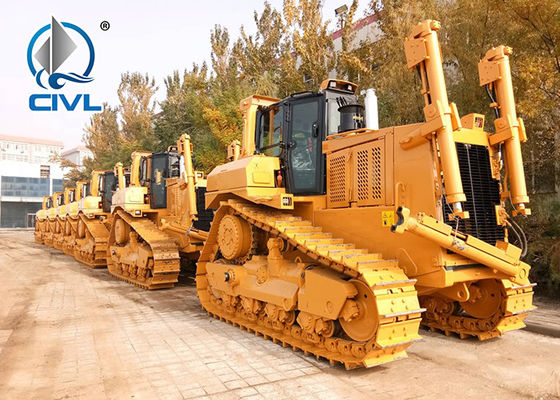

430HP SD9 bulldozer is semi-rigid elasticity suspending, hydraulic-mechanical transmission, elevated sprocket track type, wholly hydraulic operation, pilot hydraulic controlling blade operation, modular designing components easily for maintaining, portable laborsaving nicety man-machine designing controlling system, electric monitoring, ROPS cabin, many optional equipments, broadly used in transport, desert, oil field, power station, mine, swamp etc. Large-scale soil stone construction, You can select original American engine, emission standard meet with Tier3 with lower fuel consumption and stronger power output projects.
| Blade | Straight and tilting |
| Ground pressure:(kpa) | 112 |
| Min. ground clearance:(mm) | 517 |
| Dozing capacity:(m3) | 13.5 |
| Max. digging depth:(mm) | 614 |
| Operation weight:(kg) | 48880(with ripper) |
| Track gauge:(mm) | 2250 |
| Gradient: | 30°/25° |
| Blade width:(mm) | 4314 |
| Overall dimensions:(L×W×H)(mm) | 8478×4314×3970 |
2,Undercarriage System
| Type: | The track is triangle shape, the sprocket is elevated elastic suspended. |
| Number of track rollers(each side) | 8 |
| Pitch (mm) | 240 |
| Width of shoe (mm) | 610 |
3,Gear
| 1st | 2nd | 3rd | |
| Forward (Km/h) | 0-3.9 | 0-6.9 | 0-12.2 |
| Backward (Km/h) | 0-4.8 | 0-8.5 | 0-15.1 |
