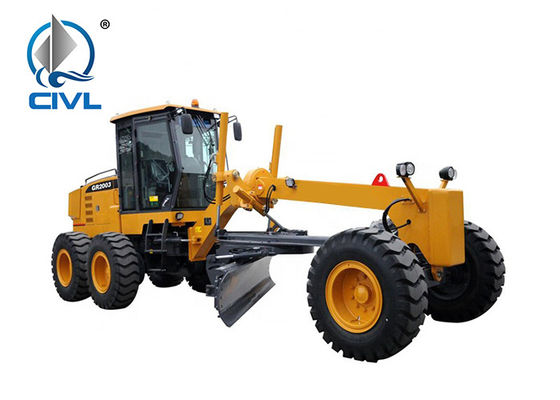

White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader Road Machinery

White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader Road Machinery

  • White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader  Road Machinery
  • White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader  Road Machinery
  • White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader  Road Machinery
  • White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader  Road Machinery
  • White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader  Road Machinery
White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader  Road Machinery
Product Details:
Place of Origin: China
Brand Name: XCMG
Certification: CCC/ISO
Model Number: GR135
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Waxed on deck
Delivery Time: Within 30 days
Supply Ability: 800units/month
Contact Now
Detailed Product Description
Dimension: 8015×2380×3050mm Operating Weight(Standard): 11000kg
Rated Power/speed: 100/2200kw/rpm Maximum Lift Above Ground: 6.6m
High Light:

mini motor grader

,

road grader

White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN



Specifications

Motor Grader Features:
1) Shanghai engine or Cummins engine from 100hp-500hp
2) ZF or Hangzhou transmissi



XCMG brand motor grader,

Model: GR100, GR135, GR165, GR180, GR200, GR215, GR215A, GR230, GR300, GR500



l  Shangchai engine, Dongfeng Cummins engine or Original Cummins engine

l  XCMG axle, Meritor axle

l  WG180 transmission or ZF transmission

l  Cabin with air conditioner

l  Delivery time: 7-15days normaly





Advantage

1. The frame is hinge joint , with front turning wheel, short turning radius, flexible for working



2.  The movement of blade is controlled by hydraulic



3.The rear driving axle has installed NP-SPIN self-locked differential



Specifications

Basic specification

Engine model

6BT5.9

Rated power/speed

100/2200kw/rpm

Dimension(LxWxH)

8015×2380×3050mm

Operating weight(Standard)

11000kg

Performance specification

Travelling speed ,forward

5,8,13,20,30,42km/h

Travelling speed ,reverse

5,13,30km/h

Tractive force(f=0.75)

61.3KN

Max. gradeability

20%

Tire inflation pressure

300kPa

Working hydraulic pressure

16MPa

Transmission pressure

1.3~1.8MPa

Operating specification

Max. steering angle of front wheels

±49°

Max. lean angle of front wheels

±17°

Max. oscillation angle of front axle

±15°

Max. oscillation angle of balance box

16

Frame articulation angle

±27°

Min. turning radius using articulation

6.6m

Biade

Maximum lift above ground

410mm

Maximum depth of cutting

535mm

Maximum blade position angle

90°

Blade cutting angle

28°—70°

Circle reversing rotation

360°

Moldboard width X height

3710×610mm

Photos

White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader  Road Machinery 0White / Yellow 11000KG Motor Grader 136HP Engine Tractive Force 61.3KN CVGR135 Grader  Road Machinery 1
