Create more value and wealth through our quality products and professional solutions.
 |
| Place of Origin: | China |
| Brand Name: | SHANTUI |
| Certification: | CCC ISO CE |
| Model Number: | SD32 |
| Minimum Order Quantity: | 1 |
|---|
| Operating Weight: | 37.2T | L×W×H (Ripper Not Included): | 6880×4130×3725 |
|---|---|---|---|
| Rated Power: | 235/2000kW/rpm | Engine: | Cummins NT855-C280S10 |
| Blade Type: | Straight Tilt BladeSemi-U BladeAngle Blade | Blade Width: | Straight Tilt Blade 4130×1590Semi-U Blade 4030×1720Angle Blade 5000×1140 |
| High Light: | heavy construction equipment,hydraulic bulldozer |
||

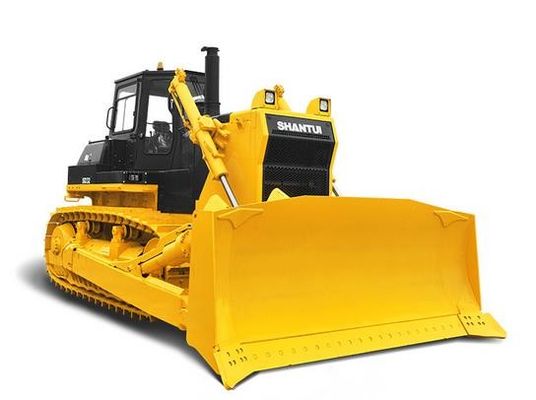

Based on the Shantui TY320B, the SD32 bulldozer was developed by Shantui for operation in earth moving projects with tough conditions. Equipped with a hydraulic drive system with hydraulic control technology and an advanced structure, which provides reliable performance and convenient and flexible operation, the SD32 is the ideal medium size construction machine for earth moving projects.
Features
1. Great tractive force and good adhesion property.
2. More reliable transmission, higher transmission efficiency, simpler structure and more convenient maintenance, compared to hydraulic bulldozer.
3. Powerful engine, low oil consumption and low noise, accommodating various operating conditions with an elevation below 4000 m.
4. Travel system with swing rocker beam (equalizer). The rocker beam is designed with semi-rigid suspension, which may ensure operating stability and smoothness of the complete machine, but also may effectively reduce the impact of the operating surface to the transmission system and cab, and improve safety and comfort.
5. Properly matched transmission ratio of transmission system with engine to make full use of engine power.
6. Central lubricating system provided for bad operating conditions.
| ITEM | UNIT | SD32 |
|---|---|---|
| L×W×H (Ripper not included) | mm | 6880×4130×3725 |
| Operating weight (Ripper not included) | t | 37.2 |
| Engine | - | CumminsNTA855-C360S10 |
| Rated power | kW/rpm | 235/2000 |
| Gradeability | ° | 30 |
| Blade type | - | Straight tilt bladeSemi-U bladeAngle blade |
| Blade width | mm | Straight tilt blade 4130×1590Semi-U blade 4030×1720Angle blade 5000×1140 |
| Dozing capacity | m3 | Straight tilt blade 10Semi-U blade 11.9Angle blade 6 |
| Ma× drop below ground of blade | mm | 560 |
| Lift height of blade | mm | 1560 |
| Ripper type | - | Single ripperThree-shank ripper |
| Ripping depth of ripper | mm | Single ripper 1250Three-shank ripper 842 |
| Lifting height of ripper | mm | Single ripper 955Three-shank ripper 883 |
| Number of carriers (each side) | - | 2 |
| Number of track rollers (each side) | - | 7 |
| Number of track shoes (each side) | - | 41 |
| Width of track shoe | mm | 560 |
| Track gauge | mm | 2140 |
| Ground length and ground pressure | mm/MPa | 3150-0.105 |
| Pitch | mm | 228.6 |
| Forward speed | km/h | 0–3.6 |
| 0–6.6 | ||
| 0–11.5 | ||
| Reverse speed | km/h | 0–4.4 |
| 0–7.8 | ||
| 0–13.5 |
Details
The extended track ensures low ground pressure, high reliability and strong traction, contributing to precise operation;
The power shift transmission not only ensures smooth power shift, but also reaches target speeds and carries out directional transfers with a single control lever;
The wet steering clutch and brake can extend service life. They work interactively, ensuring quick and flexible steering operations;
The single control lever can control all blade actions;
The drift sealing in the drive wheel, track roller and carrier roller can prevent dust from entering the track system, as well as lubricant leakage, thereby ensuring a long service life;
The hexahedron cab features wide visibility, and the insulation materials in the cab can reduce noise and vibrations;
The spin type fuel filter and dust separator, the air filters and the other filtration devices can prolong work time and reduce service time;
The comfortable cab seat can adjust upward and downward, forward and backward, meeting any positional needs the operator may have;
Side engine operation and the combination of a drive/brake operation system and foot brake makes overall operation of the bulldozer more rapid and convenient.
