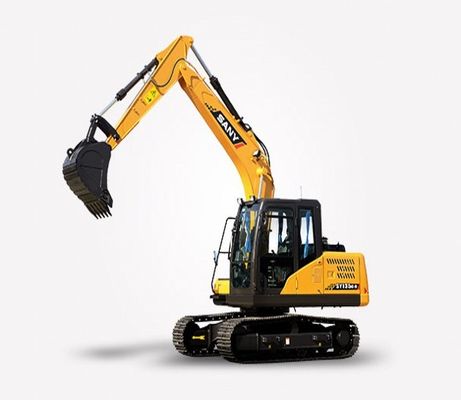

SY135 Hydraulic Excavator Advanced Engine And Hydraulic System

SY135 Hydraulic Excavator Advanced Engine And Hydraulic System

  • SY135 Hydraulic Excavator Advanced Engine And Hydraulic System
  • SY135 Hydraulic Excavator Advanced Engine And Hydraulic System
  • SY135 Hydraulic Excavator Advanced Engine And Hydraulic System
  • SY135 Hydraulic Excavator Advanced Engine And Hydraulic System
SY135 Hydraulic Excavator Advanced Engine And Hydraulic System
Product Details:
Place of Origin: China
Brand Name: CIVL
Certification: ISO,CCC
Model Number: CIVL
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: Within 35 days
Contact Now
Detailed Product Description
Engine Rated Power: 72.7/2,200 KW/rpm Engine Model: 4BG1-TABGC-03-C2
Engine Max.torque: 337.6/1600N*m/rpm Arm Cylinders Bore X Stroke: 115×1,175mm
Overall Weight: 13500kg Bucket Capacity: 0.53m3
High Light:

compact excavator

,

hydraulic excavator

Advanced engine and hydraulic system

Super powerful engine combines with the new electrical positive flow hydro-system makes the excavator worked with high-efficiency and well adapted to different working environments.

Durable and reliable

With reinforced working device and high-strength swing plant, construction components' life span are improved 30%.

Efficient and energy-saving

New hydro-system, accurate flow control ability makes the efficiency improved 10% and fuel consumption reduced 10%.


Transport length7700mm
Transport width2550mm
Transport height2815mm
Upper body width2490mm
Std. track shoe width500mm
Track gauge1990mm
Min. ground clearance425mm
Tail swing radius2240mm
Roller gauge2930mm
Track length3665mm
Track height752mm
Operator eye level2330mm
Cab top length1632mm
Tail length1510mm
Counterweight ground cleararice903mm
Length (without working device)4057mm
Ground length (transportation)4319mm
Counterweight clearance1925mm
Blade height (to cab roof)2740mm
Max. digging height8685mm
Max. dumping height6180mm
Max. digging depth5510mm
Max. vertical digging depth4890mm
Max. digging reach8290mm
Min. swing radius2500mm
Boom height at min.swing radius6500mm
Engine model4BG1-TABGC-03-C2
Engine rated power72.7/2,200 kW/rpm
Engine max.torque337.6/1600N*m/rpm
Engine displacement4.329L
Engine start motor24/4.5V/kw
Engine generator50V/A
Boom cylinders bore X stroke105×990mm
Arm cylinders bore X stroke115×1,175mm
Bucket cylinders bore X stroke100×885mm
Overall weight13500kg
Bucket capacity0.53m3
Bucket digging force92.7kN
Arm digging force66.13kN
Tractive force113kN
Travel speed (high/low)5.5/3.5km/h
Swing speed12rpm
Gradeability70%/35°
Ground pressure41.7kPa
Fuel tank capacity240L
Hyd tank capacity150L
Engine oil capacity15L
Engine coolant capacity10L
Final drive capacity2×2.6L
Track shoes(per side)44
Carrier roller(per side)1
Lower roller(per side)7
Boom length4.6m
Arm length2.5m
Bucket capacity (optional)0.22/0.7m3
Track shoe width (optional)600mm
Engine hood length2104mm
Swing drive capacity3L


SY135 Hydraulic Excavator Advanced Engine And Hydraulic System 0SY135 Hydraulic Excavator Advanced Engine And Hydraulic System 1SY135 Hydraulic Excavator Advanced Engine And Hydraulic System 2SY135 Hydraulic Excavator Advanced Engine And Hydraulic System 3
