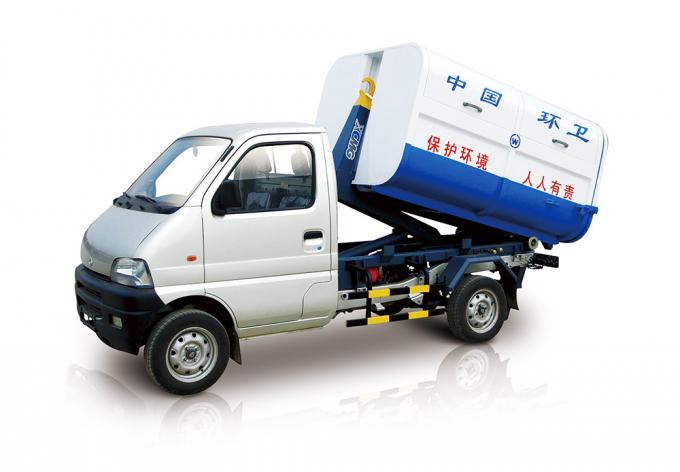

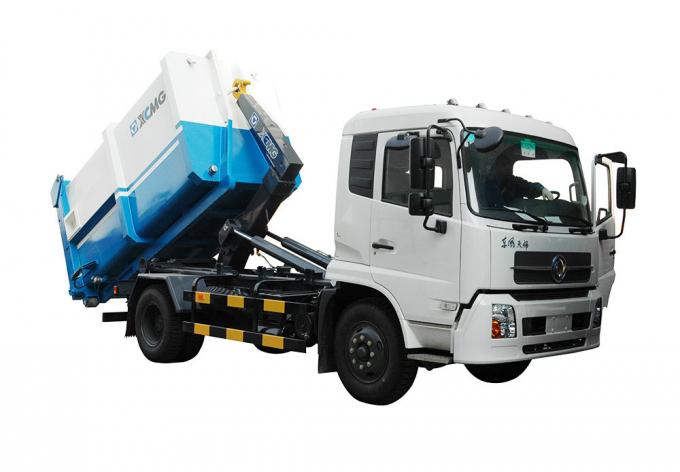

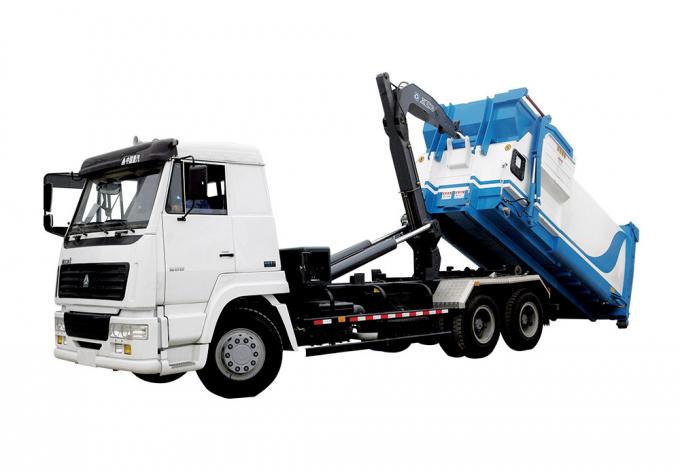

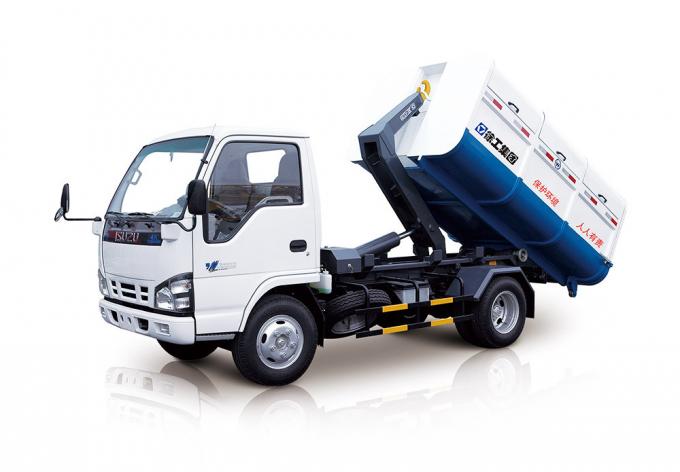

6-14T Garbage Compactor Truck Detachable container garbage collector

China 6-14T Garbage Compactor Truck Detachable container garbage collector supplier
6-14T Garbage Compactor Truck Detachable container garbage collector supplier 6-14T Garbage Compactor Truck Detachable container garbage collector supplier 6-14T Garbage Compactor Truck Detachable container garbage collector supplier 6-14T Garbage Compactor Truck Detachable container garbage collector supplier 6-14T Garbage Compactor Truck Detachable container garbage collector supplier

Large Image :  6-14T Garbage Compactor Truck Detachable container garbage collector

Product Details:

Place of Origin: China
Brand Name: XCMG
Certification: ISO
Model Number: XZJ5121ZXXD4

Payment & Shipping Terms:

Minimum Order Quantity: 1
Contact Now
Detailed Product Description
Lifting Capacity: 6000/8000kg Maximum Weight: 12490kg
Curb Weight: 6150 Kg Hooking Time: ≤60s
Unload Time: ≤60s



Compression type garbage truck is specially used for the collection of urban residents living garbage and other garbage can be compressed to the sanitation of special vehicles, compressed garbage truck by sealed garbage tank, hydraulic system, operating system. Vehicle for the whole sealing type, the self compression, self dumping, compression process of sewage all entered the sewage tank, is thoroughly solve the secondary pollution of garbage in the process of transportation problem, the key components of the import parts and has the advantages of high pressure, good sealing performance, convenient operation, safety and labor saving. Mainly after loading compression type garbage car and loading compression type garbage truck, the rear loading compression type garbage truck optional hanging bucket collection device, bucket collecting device, a swing arm collection device, a hanging Tietong collecting device, users can choose according to the different needs of different collecting device.
Product features:
1, in line with industry standards, high degree of standardization, good general.
2, the use of electro - hydraulic joint control technology to simplify the circuit, to achieve a safe interlock function, safe and reliable, reducing the failure rate.
3, the control of the use of user-friendly design, smooth operation, flexible.
4, dump lock using a unique design, and other manufacturers of the locking mechanism is compared, operation more convenient, all the operations can be completed in the cab, stability is greatly improved; dump lock using self reset design so as to avoid the damage of the main arm back and dump lock closed on the structure of.
5, structural parts are using high strength steel, in the case of greatly enhance the ability to play, but the weight than other manufacturers of products to light.



MAIN SPECIFICATION
vehicle model XZJ5121ZXXD4 XZJ5140ZXXD4 XZJ5162ZXXD4
lifting capacity 6000kg 8000/10000kg 12000/14000kg
maximum total weight 12490kg 14490kg 16000kg
curb weight 6150/5790kg 7290kg 6950kg
rated weihght 6145/6505kg 7005kg 8855kg
max° dump angle ≥48° ≥48° ≥48°
hooking time ≤60s ≤60s ≤60s
unload time ≤60s ≤60s ≤60s
max hydraulic pressure 25Mpa 25Mpa 30Mpa
dimension(L*W*H) 6530*2490*2760/3030mm 7230/6530*2490*3030mm 6530*2490*3050mm
wheel base 3800mm 3800/4200mm 3800mm
height of hook center 930mm 1570mm 1570mm
track width of the box 1070mm 1070mm 1070mm
